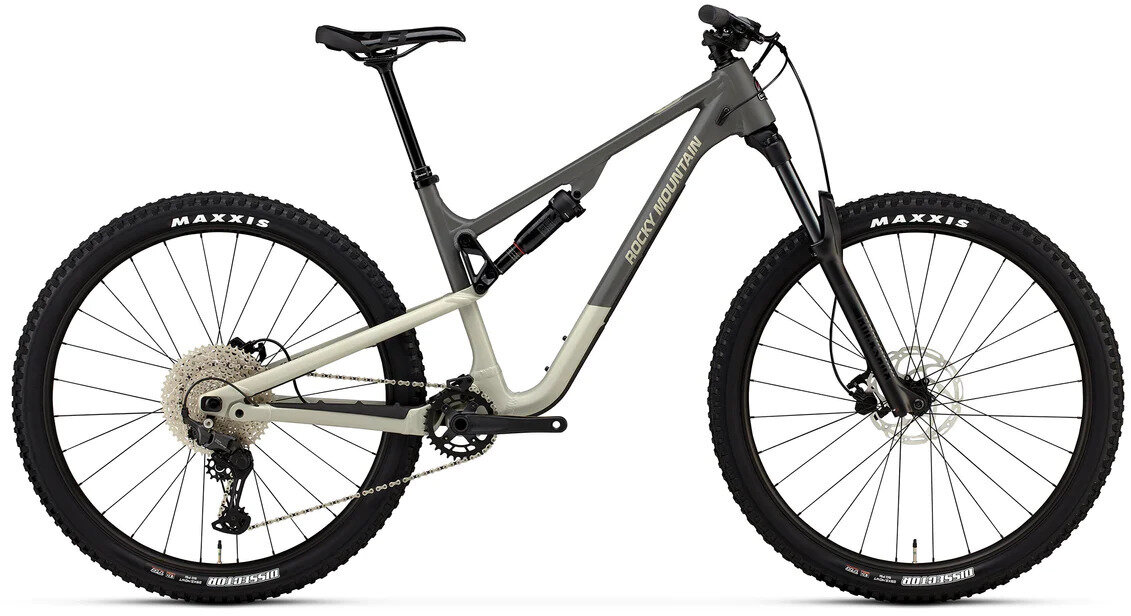

Rocky Mountain Instinct A10 Shimano
$3,199.00
Details
In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Specs
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Recon Silver RL 150mm | 42mm Offset |
| Headset | FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock | RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Rims/Wheels | Rocky Mountain TR30 Tubeless | 28H / Tubeless Compatible - Tape / Valves / Sealant Not Incl |
| Hubs | F: Shimano TC500 | 15x110m | 28H. R: Shimano TC500 Boost 148mm | 28H |
| Spokes | 2.0 Stainless |
| Tires | F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready |
| Crankset | Rocky Mountain Microdrive | 32T | Sram 76mm BCD | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
| Bottom Bracket | Rocky Mountain Sealed BB92 - Shimano Compatible |
| Chain | KMC X11-1 |
| Rear Derailleur | Shimano CUES 11spd |
| Shifters | Shimano CUES 11spd |
| Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Tape/Grips | Rocky Mountain Lock On Light |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Brakes | Tektro HD-M275 | Shimano Pad Compatible |
| Saddle | WTB Volt 142 |
| Seat Post | X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Smokin' in the Boys Room / Bad to the Bone / Medium / 29" | 770416482072 | B0324MD2 | INS311140799 |
| Smokin' in the Boys Room / Bad to the Bone / Large / 29" | 770416482119 | B0324LG2 | INS315473849 |
