Trek Checkpoint SL 5 AXS Gen 3

Trek Checkpoint SL 5 AXS Gen 3
  • Color: Trek Black/Matte Carbon Smoke
  • Color: Trek Black/Matte Carbon Smoke
  • Color: Trek Black/Matte Carbon Smoke
  • Color: Trek Black/Matte Carbon Smoke
  • Color: Trek Black/Matte Carbon Smoke
$4,299.99
Color: Trek Black/Matte Carbon Smoke
Size: ML
Please select options Unavailable
This item is only available for in-store pickup

Details

Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50mm tires (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It comes equipped with a wireless 12-speed SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.

It's right for you if...
You want a carbon gravel bike for exploring the beyond, and want to save on parts you can upgrade over time. You want the gravel-smoothing benefits of IsoSpeed tech that soaks up chatter from below so can ride stronger longer, and plenty of mounts to carry all your gear and hydration.

The tech you get
A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50mm tires (as measured). A 12-speed 1x SRAM Apex XPLR AXS fully wireless drivetrain, hydraulic disc brakes, carbon seatpost, and Tubeless Ready Bontrager Paradigm SL wheels with 42mm tires.

The final word
When you're ready to load up and explore the road less traveled, reach for Checkpoint SL 5 AXS Gen 3. This capable and comfortable gravel bike balances price and performance with a blend of components that deliver reliably and a frame that's packed with road-smoothing features.

Specs

Frame 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

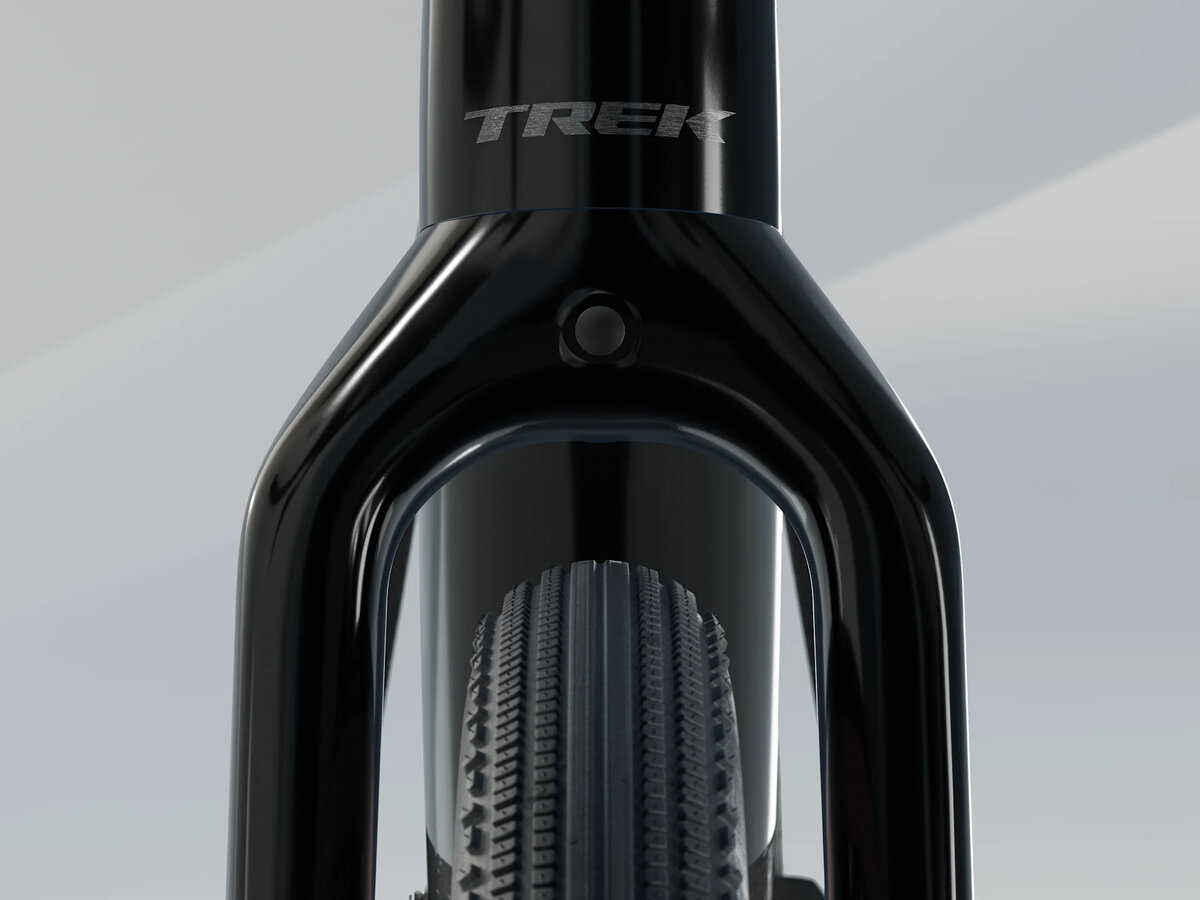

Fork Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Rims/Wheels F: Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples. R: Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Tires Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Crankset SRAM Apex 1, 40T, DUB Wide, 172.5mm length
Bottom Bracket SRAM DUB, T47 threaded, internal bearing
Chain SRAM Apex, 12 speed
Rear Derailleur SRAM Apex XPLR eTap AXS, 44T max cog
Shifters SRAM Apex AXS, 12 speed
Handlebars Bontrager Elite Gravel, alloy, 44cm width
Tape/Grips Bontrager Supertack Perf tape
Stem Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Saddle Verse Short Comp, steel rails, 145mm width
Seat Post Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Cassette SRAM XPLR PG-1231, 11-44, 12 speed
Battery SRAM eTap battery pack (with charger)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Trek Black/Matte Carbon Smoke / ML 197216040057 5321625 CHE478194933
