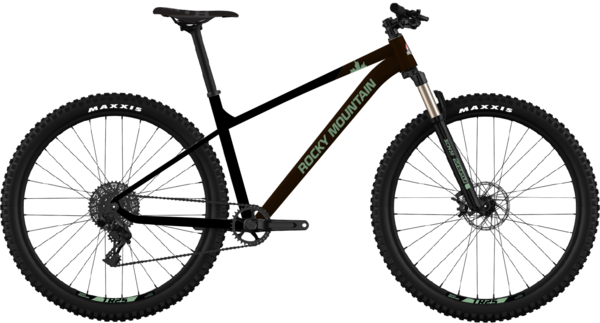

Rocky Mountain Fusion 30 Microshift
$1,419.00
Details
The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion's™ responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway to the trail and onto the singletrack. The Fusion's™ geometry has been optimized to provide you with the best possible experience when heading out for a ride.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 589 | 616 | 643 | 671 |
| Head Tube Angle (deg) | 66.5 | 66.5 | 66.5 | 66.5 |
| Head Tube Length (mm) | 95 | 100 | 110 | 120 |
| Seat Tube Angle (deg) | 74.5 | 74.5 | 74.5 | 74.5 |
| Seat Tube Length (mm) | 380 | 420 | 445 | 480 |
| Rear Centre (mm) | 445 | 445 | 445 | 445 |
| Bottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
| Reach (mm) | 425 | 450 | 475 | 500 |
| Stack (mm) | 593 | 598 | 607 | 616 |
| Standover Height (mm) | 763 | 776 | 786 | 801 |
| Wheelbase (mm) | 1153 | 1180 | 1209 | 1238 |
| Frame Size | Measurements |
|---|---|
| Small | 165 - 170 cm / 5’3" - 5’7" |
| Medium | 167.5 - 180 cm / 5’6" - 5’11" |
| Large | 177.5 - 188 cm / 5’10" - 6’2" |
| X-Large | 185.5 - 198 cm / 6’1" - 6’6" |
Specs
| Frame | Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube | Dropper Post Compatible Rear Triangle |
|---|---|
| Fork | Suntour XCR32 LOR Air 100mm |
| Rims | Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
| Hubs | Rocky Mountain QR |
| Spokes | 2.0 Stainless |
| Tires | F: WTB Ranger Comp 29 x 2.4 // R: WTB Ranger Comp 29 x 2.4 |
| Bottom Bracket | Rocky Mountain Sealed - Shimano Compatible |
| Crankset | Rocky Mountain Microdrive 2PC | 30T | 76mm Asymmetrical BCD | 24mm Spindle | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm |
| Shifters | MicroShift Advent X 10spd |
| Rear Derailleur | MicroShift Advent X 10spd With Clutch |
| Cassette/Freewheel | MicroShift CS-H104 11-48T |
| Chain | KMC X10-1 |
| Brakes | Tektro HD-M280 | Shimano Pad Compatible |
| Handlebars | Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Tape/Grips | Rocky Mountain Lock On Light |
| Stem | Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm |
| Headset | Rocky Mountain ZS44|56 | Loose Ball Bearings | 1.5" Crown Race |
| Seatpost | Rocky Mountain 30.9mm |
| Saddle | Rocky Mountain 148 Steel |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black/Brown/Green / Large / 29-inch | 770416461718 | B0350LG2 | FUS374494409 |
