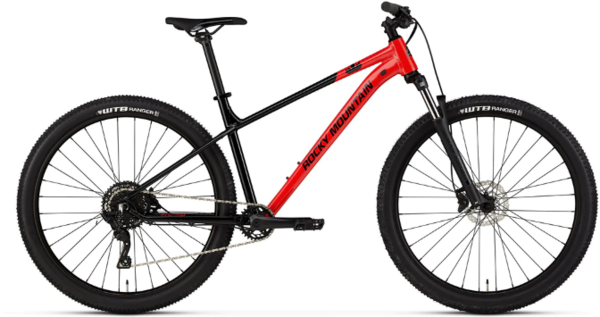

Rocky Mountain Fusion 10

Rocky Mountain Fusion 10
  • Color: Black/Red
  • Color: Blue/Green
$1,049.00
Wheel Size:
29"
Please select options

Details

The Fusion is the perfect blend of efficiency, capability, and reliability on the trail. The Fusion’s responsive handling characteristics and comfortable geometry will help you mix up your ride from the pathway, to the trail, and onto the singletrack. The Fusion’s geometry has been optimized to provide you with the best possible experience when heading out for a ride. We’ve updated the geometry to reflect the needs of a true ”downcountry” rider, including 29” wheels, a low standover height, longer reach, and a slacker head tube angle. With features like 100 mm of front travel, internal cable routing, and a 1x drivetrain, the Fusion sits at the top as our best all-around hardtail.

Specs

Frame Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube Rear Triangle
Fork Suntour XCM 100mm
Headset Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Rims/Wheels Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Hubs Shimano TX505
Spokes 2.0 Stainless
Tires F: WTB Ranger Comp 29 x 2.25 // R: WTB Ranger Comp 29 x 2.25
Crankset Rocky Mountain Microdrive 3PC | 30T |76mm Asymmetrical BCD | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm
Bottom Bracket Sealed Cartridge Bearing
Chain KMC X9
Rear Derailleur MicroShift Advent With Clutch
Shifters MicroShift Xpress Plus 9spd
Handlebars Rocky Mountain XC | 740mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Tape/Grips Rocky Mountain Lock On Light
Stem Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Brakes Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm
Saddle Rocky Mountain 148 Steel
Seat Post Rocky Mountain 30.9mm

* Subject to change without notice.

Part Numbers

Option UPC Store SKU
Black/Red / Small / 29" 770416434279 23F16426562D
Blue/Green / Small / 29" 770416434118 23F16564695N
Blue/Green / Medium / 29" 770416434156 23F16260669N
Blue/Green / Large / 29" 770416434194 23F16918854N
Blue/Green / X-Large / 29" 770416434231 23F16189737N
