Details
IT’S LANGMA SEASON.

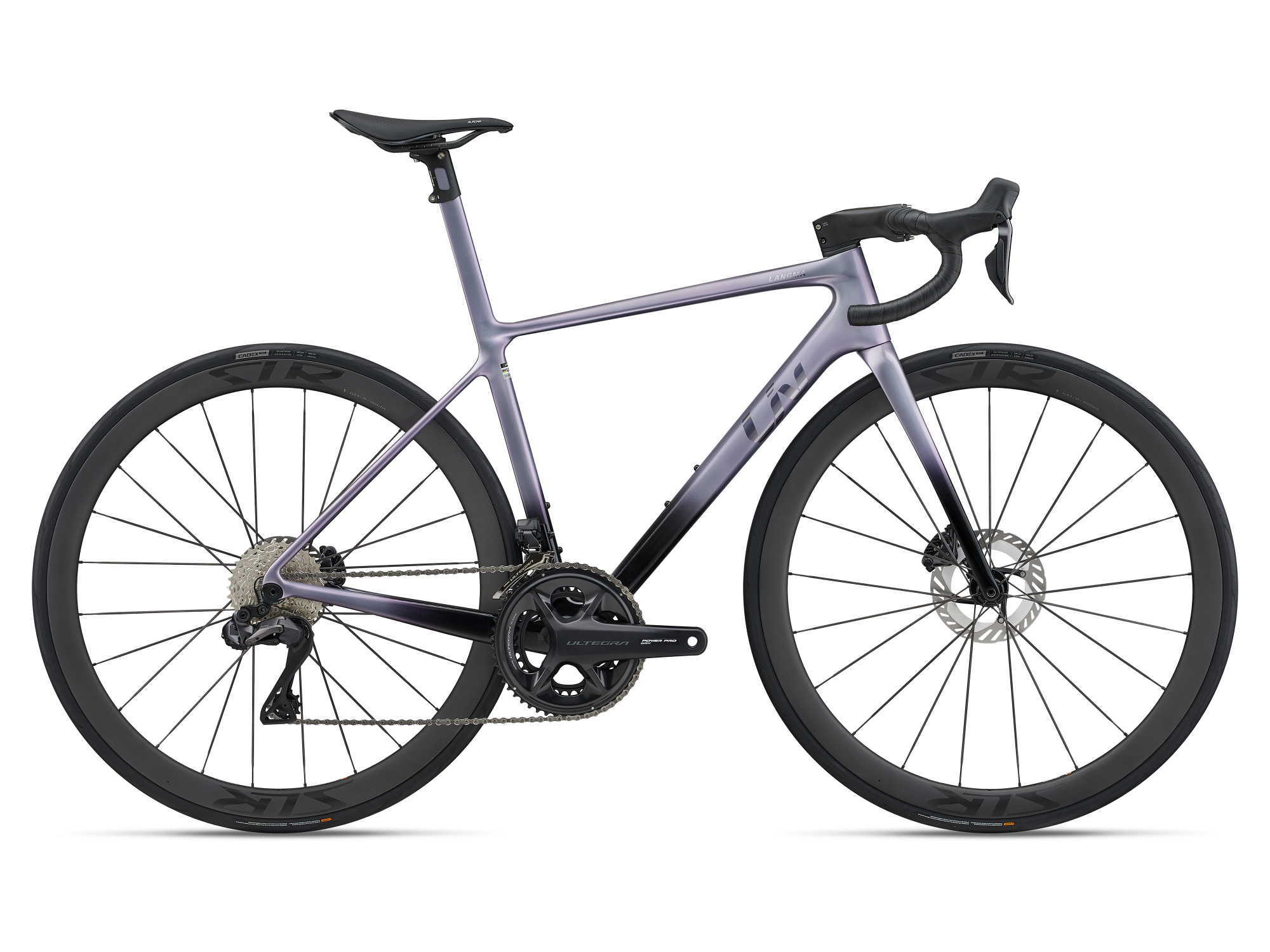

The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.
KEY PERFORMANCE FACTORS
QOM-LEVEL EFFICIENCY
The new frameset includes an all-new Variant Integrated Seatpost, which means less weight, greater compliance, and improved aero performance—turning every pedal stroke into a burst of “let’s go.”
LIMIT-PUSHING CONTROL
The flared handlebar injects control and confidence into those explosive sprints and bomber descents. Ready to race the cobbles? Run up to 33mm tires, without sacrificing precise handling.
GAP-WIDENING AERO
With a truncated ellipse tube shape, the new frameset is built to slice through wind and pelotons. A new internal cable routing design delivers a streamlined cockpit and added aero advantage.
Frame Size | X-Small | Small | Medium | Large |
---|---|---|---|---|
Seat Tube Length (mm) | 420 | 450 | 480 | 510 |
Seat tube angle (deg) | 75 | 74.5 | 74 | 73.5 |
Top tube length (mm) | 508 | 524 | 540 | 555 |
Head tube length (mm) | 120 | 135 | 155 | 175 |
Head tube angle (deg) | 71 | 72 | 72.5 | 72.5 |
Fork rake (mm) | 49 | 49 | 49 | 49 |
Trail (mm) | 68 | 61 | 58 | 58 |
Wheelbase (mm) | 973 | 977 | 984 | 996 |
Chain stay length (mm) | 405 | 405 | 405 | 405 |
BB drop (mm) | 72 | 69.5 | 69.5 | 67 |
Stack (mm) | 517 | 532 | 553 | 569 |
Reach (mm) | 370 | 377 | 382 | 386 |
Stand over (mm) | 700 | 730 | 760 | 790 |
Handlebar width (mm) | 360 | 380 | 400 | 420 |
Stem length (mm) | 80 | 90 | 100 | 110 |
Crank length (mm) | 165 | 170 | 170 | 172.5 |
Wheelsize | 700C | 700C | 700C | 700C |
Specs
Pedals | Sold Separately |
---|---|
Fork | Advanced SL-grade composite, full-composite D-shaped OverDrive Aero steerer, 12x100mm thru-axle, disc |
Hubs |
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
Rims | Giant SLR 0 40 Carbon Disc WheelSystem, [F] 40mm, [R] 40mm |
Stem | Giant Contact SLR Aerolight |
Chain | Shimano Ultegra, CN-M8100 |
Frame | Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc |
Tires | CADEX Race GC, tubeless, 700x28c (28mm), 120 TPI, folding |
Brakes |
Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm |
Saddle | Liv Alacra SLR |
Spokes | Giant Aero Carbon Spoke |
Crankset |
Shimano Ultegra, 36/52 with Giant Power Pro power meter XS: 165mm, S, M: 170mm |
Seatpost | Advanced SL-grade composite, integrated design, -5/+15mm offset |
Shifters | Shimano Ultegra Di2 |
Handlebars |
Liv Contact SLR XS:34/36cm, S:36/38cm, M:38/40cm |
Tape/Grips | Liv Stratus Elite 3.0 |
Brake Levers | Shimano Ultegra Di2 |
Bottom Bracket | Shimano BB71, press fit |
Rear Derailleur | Shimano Ultegra Di2 RD-R8150 |
Front Derailleur | Shimano Ultegra Di2 FD-R8150 |
Accessories & Extras | computer mount, tubeless prepared, 33mm max tire size |
Cassette/Freewheel | Shimano Ultegra, 12-speed, 11x34 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Cosmic Dust / Small / 700c | 4711291109667 | 1065020104 |
