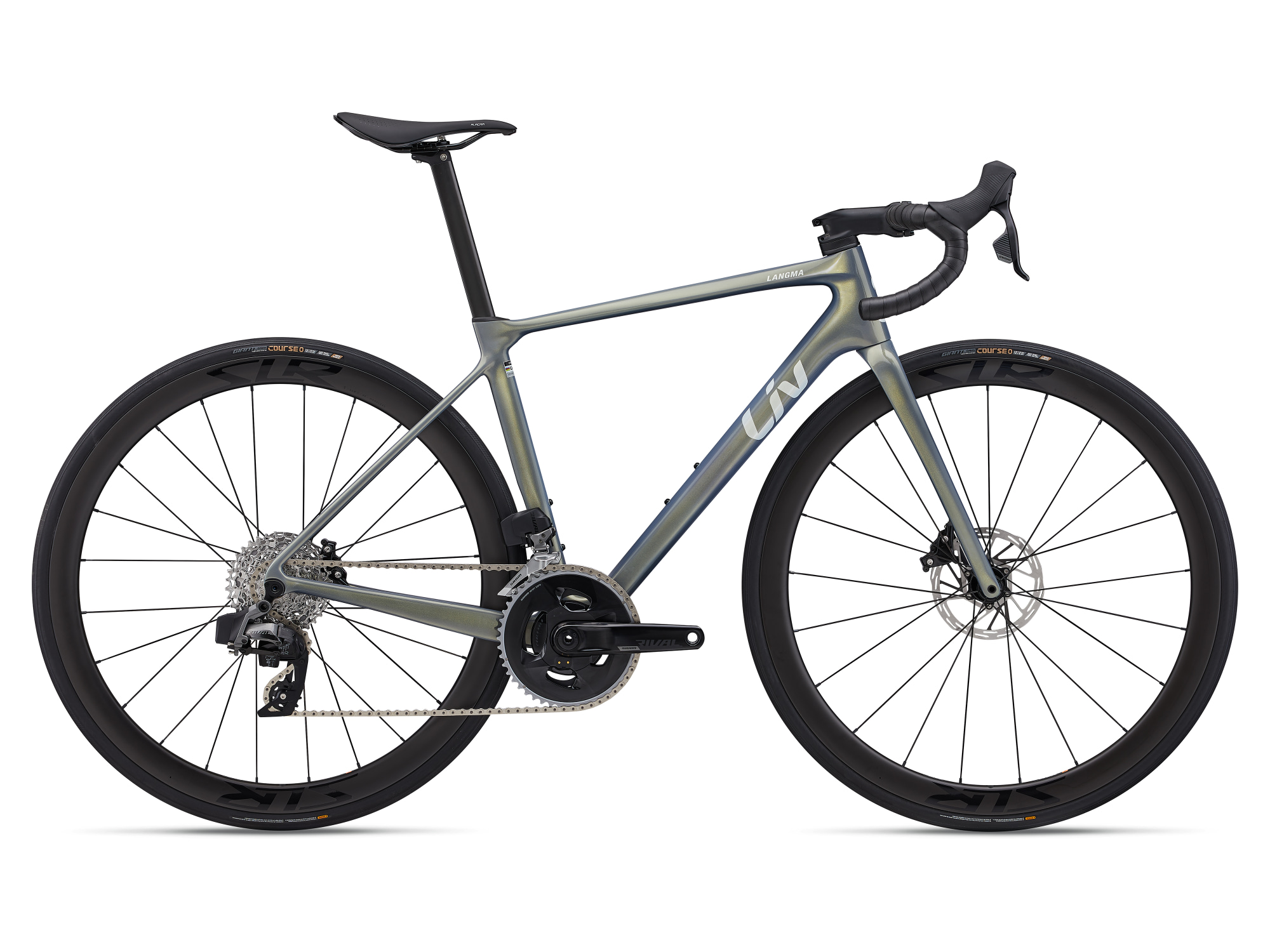

Liv Langma Advanced Pro 1 AXS
Details
IT’S LANGMA SEASON.
The official bike of road riding season, the Langma Advanced Pro was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.
KEY PERFORMANCE FACTORS
QOM-LEVEL EFFICIENCY
The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.
LIMIT-PUSHING CONTROL
Up to 33mm tire clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.
GAP-WIDENING AERO
With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.
| Frame Size | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Seat Tube Length (mm) | 420 | 450 | 480 | 510 |
| Seat tube angle (deg) | 75 | 74.5 | 74 | 73.5 |
| Top tube length (mm) | 508 | 524 | 540 | 555 |
| Head tube length (mm) | 120 | 135 | 155 | 175 |
| Head tube angle (deg) | 71 | 72 | 72.5 | 72.5 |
| Fork rake (mm) | 49 | 49 | 49 | 49 |
| Trail (mm) | 68 | 61 | 58 | 58 |
| Wheelbase (mm) | 973 | 977 | 984 | 996 |
| Chain stay length (mm) | 405 | 405 | 405 | 405 |
| BB drop (mm) | 72 | 69.5 | 69.5 | 67 |
| Stack (mm) | 517 | 532 | 553 | 569 |
| Reach (mm) | 370 | 377 | 382 | 386 |
| Stand over (mm) | 700 | 730 | 760 | 790 |
| Handlebar width (mm) | 360 | 380 | 400 | 420 |
| Stem length (mm) | 80 | 90 | 100 | 110 |
| Crank length (mm) | 165 | 170 | 170 | 172.5 |
| Wheelsize | 700C | 700C | 700C | 700C |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Advanced-grade composite, full-composite D-shaped OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Hubs |
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
| Rims | Giant SLR 1 40 Carbon Disc WheelSystem, [F] 40mm, [R] 40mm |
| Stem | Giant Contact SL Aerolight |
| Chain | SRAM Rival D1 |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |
| Tires | Giant Gavia Course 0, tubeless, 700x25c (28mm), 170 TPI, folding |
| Brakes |
SRAM Rival AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm |
| Saddle | Liv Alacra SL |
| Spokes | Sapim CX-Ray |
| Crankset |
SRAM Rival, 35/48 with Giant Power Halo power meter XS: 165mm, S, M: 170mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Shifters | SRAM Rival AXS |
| Handlebars |
Liv Contact SL XS:34/36cm, S:36/38cm, M:38/40cm |
| Tape/Grips | Liv Stratus Elite 3.0 |
| Brake Levers | SRAM Rival AXS |
| Bottom Bracket | SRAM DUB, press fit |
| Rear Derailleur | SRAM Rival AXS |
| Front Derailleur | SRAM Rival AXS |
| Accessories & Extras | computer mount, tubeless prepared, 33mm max tire size |
| Cassette/Freewheel | SRAM Rival, 12-speed, 10x36 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Aurora Noise / Medium / 700c | 4711291109315 | 1065017105 |
| Aurora Noise / Small / 700c | 4711291109308 | 1065017104 |
| Aurora Noise / X-Small / 700c | 4711291109292 | 1065017103 |
