Details

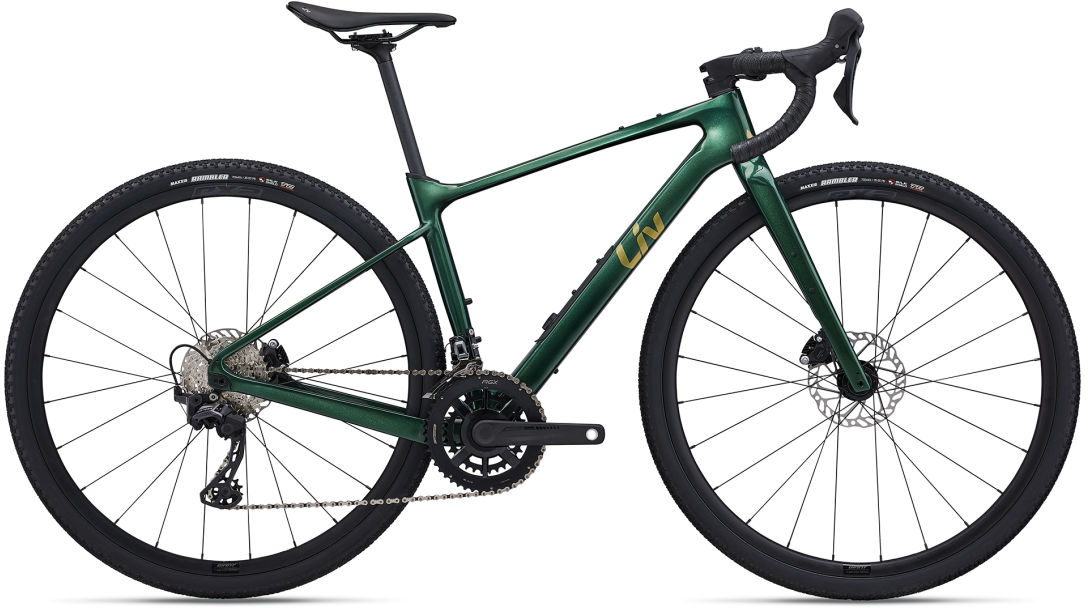

Unleash Your Spirit Of Adventure With The Devote Advanced, Expertly Designed For Gravel Racing, Riding, And Bike-Packing Explorations.
The Devote Advanced is your go-to for going fast, wherever the gravel muse may call you. Balancing speed and ruggedness, this versatile bike is ready for race day, rest day, and multi-day adventures.
Key Performance Factors:
- Ultralight Agility
An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. The redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.
- Superior Compliance and Control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
- Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
FRAME SIZE | X-SMALL | SMALL | MEDIUM | LARGE |
---|---|---|---|---|
GEOMETRY POSITION | LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH |
A - SEAT TUBE LENGTH (mm) | 390 | 420 | 465 | 500 |
B - SEAT TUBE ANGLE | 75.0° | 74.0° | 75.0° | 74.0° | 75.0° | 74.0° | 75.0° | 74.0° |
C - TOP TUBE LENGTH (mm) | 525 | 525 | 535 | 535 | 545 | 545 | 555 | 555 |
D - HEAD TUBE LENGTH (mm) | 90 | 110 | 140 | 160 |
E - HEAD TUBE ANGLE | 70.0° | 70.0° | 71.0° | 70.0° | 71.0° | 71.0° | 71.0° | 71.0° |
F - FORK RAKE (mm) | 50 | 50 | 50 | 50 |
G - TRAIL (mm) | 78 | 82 | 75 | 79 | 72 | 75 | 72 | 75 |
H - WHEELBASE (mm) | 1012 | 1022 | 1019 | 1029 | 1026 | 1036 | 1043 | 1052 |
I - CHAIN STAY LENGTH (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 430 | 440 |
J - BOTTOM BRACKET DROP (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
K - STACK (mm) | 523 | 524 | 544 | 545 | 574 | 575 | 593 | 594 |
L - REACH (mm) | 380 | 379 | 384 | 383 | 386 | 385 | 391 | 389 |
M - STAND OVER HEIGHT (mm) | 681 | 688 | 708 | 715 | 748 | 755 | 779 | 786 |
N - HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 |
O - STEM LENGTH (mm) | 50 | 60 | 70 | 80 |
P - CRANK LENGTH (mm) | 165 | 170 | 172.5 | 172.5 |
Q - WHEEL SIZE | 700X42C | 700X42C | 700X42C | 700X42C |
Frame Size | Rider Height (cm) | Rider Height (in) |
---|---|---|
X-Small | 150 - 163 | 4'11" - 5'4" |
Small | 158 - 169 | 5'2" - 5'7" |
Medium | 164 - 175 | 5'5" - 5'9" |
Large | 170 - 181 | 5'7" - 5'11" |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing |
---|---|
Fork | Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc |
Rims | Giant P-X2 Disc wheelset, alloy |
Hubs | Giant alloy, 12mm thru-axle |
Spokes | Sapim |
Tires | Maxxis Rambler, 700x40c, tubeless |
Bottom Bracket | FSA, press fit |
Crankset | FSA Omega Modular AGX+, 32/48 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm |
Shifters | Shimano GRX RX-610, 2x12 |
Front Derailleur | Shimano GRX RX-820 |
Rear Derailleur | Shimano GRX RX-820 |
Cassette/Freewheel | Shimano 105, 12-speed, 11x36 |
Chain | KMC X12L-1 |
Brakes | Shimano GRX BR-RX410 hydraulic |
Rotors | Giant MPH rotors 160mm |
Brake Levers | Shimano GRX RX-610 hydraulic |
Handlebars | Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, alloy XS: 400mm, S: 400mm, M: 420mm, L: 420mm |
Tape/Grips | Liv All Condition |
Stem | Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm |
Seatpost | Giant Contact D-Fuse, composite, 14mm offset |
Saddle | Liv Approach |
Pedals | Sold Separately |
Accessories & Extras |
Tubeless prepared ISC clamp Integrated down tube storage bag |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Kelp Forest / Large | 04712878980549 | 1032007127 | 24D28404591T |
