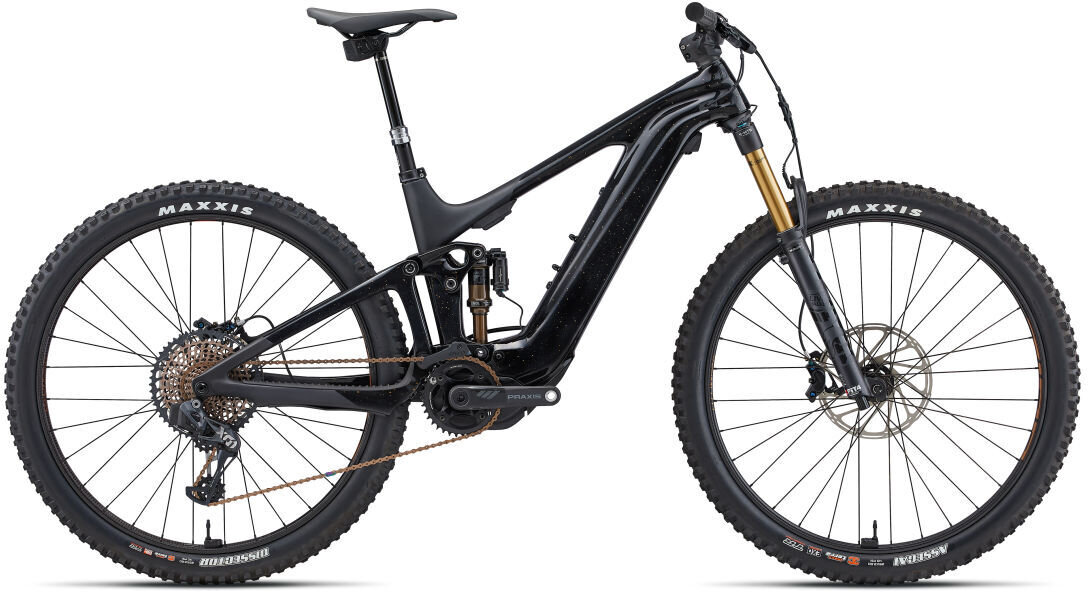

Giant Trance X Advanced E+ LTD

Giant Trance X Advanced E+ LTD
  • Color: Kashima Flake
  • Color: Kashima Flake
  • Color: Kashima Flake
  • Color: Kashima Flake
  • Color: Kashima Flake
  • Color: Kashima Flake
  • Color: Kashima Flake
  • Color: Kashima Flake
$15,999.00
Color:
Kashima Flake
Size:
Medium
Please select options
This item is only available for in-store pickup

Details

This limited-edition, high-performance E-MTB gives riders the power to conquer any terrain, from big mountain adventures to everyday trail rides, with absolute confidence and fun.

POWERFUL AND RESPONSIVE
SyncDrive Pro motor with 85Nm of torque creates powerful pedaling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

ADAPTABLE TO THE TERRAIN
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

CLEAN COCKPIT
The RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design. An all-new composite Giant Contact SLR Trail Integrated handlebar offers adjustability, compliance, light weight (255gr), and a clean profile.

Specs

Frame Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, E-bike integrated
Rear Shock Fox Float X Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, E-bike integrated
Rims/Wheels Zipp 3ZERO MOTO Carbon
Hubs Zipp 3ZERO MOTO ZM2
Spokes Zipp 3ZERO MOTO
Tires Maxxis Assegai 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis Dissector 29x2.6"" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Crankset Praxis Performance Carbon e-crank arms, SRAM X-SYNC Eagle 36T chain ring
Chain SRAM XX1 Eagle PowerLock, 12-Speed
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur SRAM XO1 Eagle AXS wireless electronic shifting
Shifters SRAM AXS Rocker Paddle, wireless electronic shifting
Handlebars Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm (760mm minimum cut width), 7/8/9° Back Sweep adjust system, meets DH test standard, GPS mount included
Tape/Grips Giant Tactal Pro-E, single lock-on, tapered design, 135mm 28~30mm (S/M) 142mm 29~32mm (L/XL), Integrated for Ergo3 remote button left or right (optional)
Stem Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System
Brake Levers SRAM Code RSC
Brakes SRAM Code RSC, 4-piston, hydraulic disc,220mm[F] / 200mm[R]
Saddle Giant Romero SL, Neutral
Seat Post SRAM Reverb AXS, dropper, 30.9mm (S:125, M:150, L/XL:170)
Motor Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Controller Giant RideControl Ergo3, grip integrated remote
Display Giant RideControl GO, frame integrated LED console, Optional wireless ANT+ display
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger Giant EnergyPak 6A smart charger, 60% in 3:00h

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Kashima Flake / Medium 2203305105 TRA32543377E
