Details

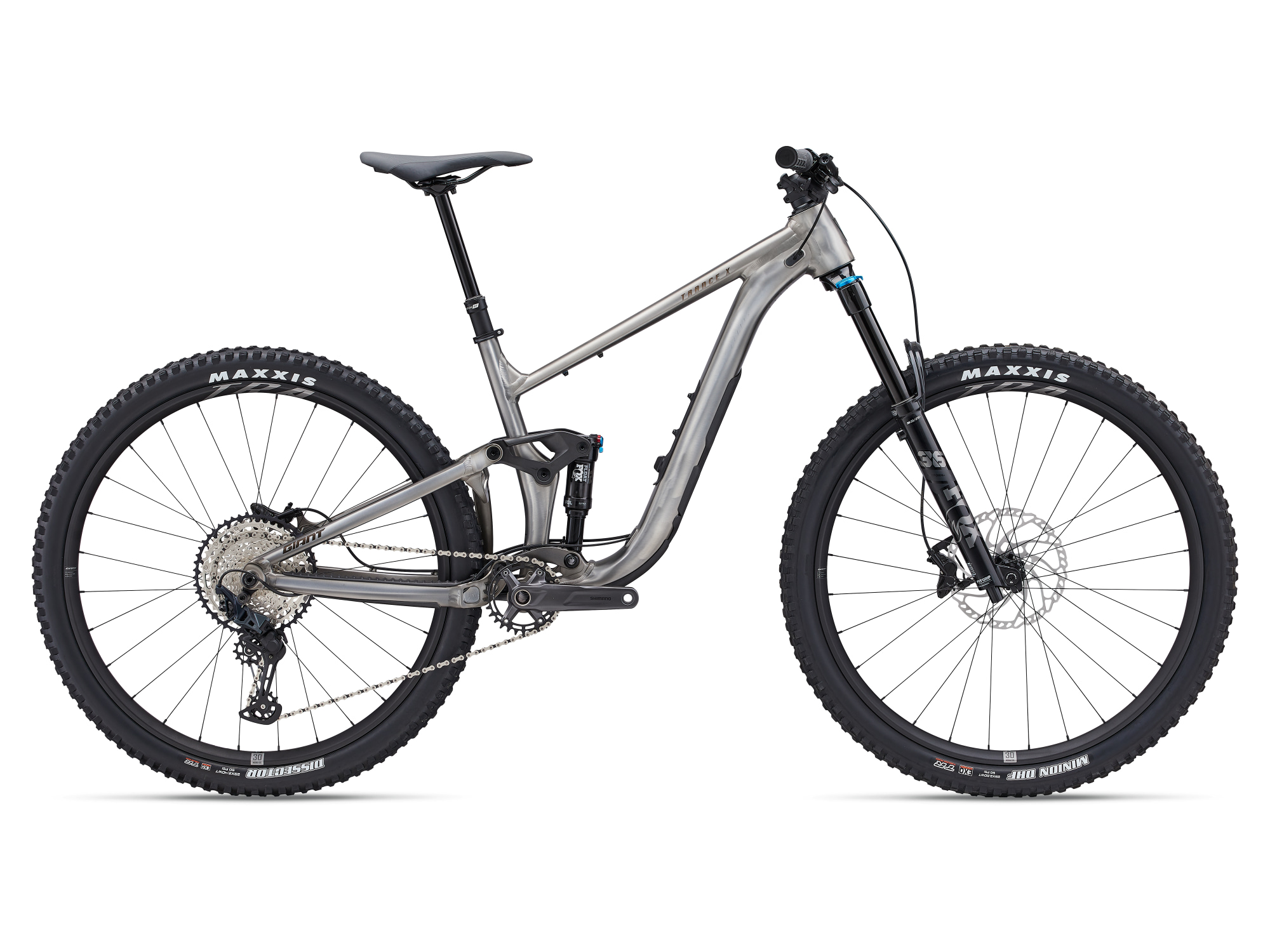

Find your flow on technical trails. With adjustable geometry, the option to change rear wheel size, and a new 140mm Maestro rear suspension setup, this versatile trail bike steamrolls singletrack with confidence and control.
pdated suspension
A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.
Adjustable trail geometry
A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.
Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favor this “mullet” setup for riding steep, technical terrain.
Size | S | M | L | XL |
---|---|---|---|---|
LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH |
SEAT TUBE LENGTH | 400 mm | 15.7 in | 425 mm | 16.7 in | 450 mm | 17.7 in | 475 mm | 18.7 in |
SEAT POST INSERTION DEPTH | 280 mm | 11 in | 305 mm | 12 in | 330 mm | 13 in | 355 mm | 14 in |
SEAT TUBE ANGLE | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
TOP TUBE LENGTH | 571 mm | 22.5 in | 570 mm | 22.4 in | 569 mm | 22.4 in | 602 mm | 23.7 in | 601 mm | 23.7 in | 600 mm | 23.6 in | 624 mm | 24.6 in | 623 mm | 24.5 in | 622 mm | 24.5 in | 657 mm | 25.9 in | 656 mm | 25.8 in | 655 mm | 25.8 in |
HEAD TUBE LENGTH | 100 mm | 3.9 in | 105 mm | 4.1 in | 115 mm | 4.5 in | 125 mm | 4.9 in |
HEAD TUBE ANGLE | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
FORK RAKE | 44 mm | 1.7 in | 44 mm | 1.7 in | 44 mm | 1.7 in | 44 mm | 1.7 in |
TRAIL | 134.1 mm | 5.3 in | 131.3 mm | 5.2 in | 128.4 mm | 5 in | 134 mm | 5.3 in | 131.3 mm | 5.2 in | 128.5 mm | 5 in | 133.9 mm | 5.2 in | 131.3 mm | 5.2 in | 128.5 mm | 5 in | 133.9 mm | 5.2 in | 131.3 mm | 5.2 in | 128.6 mm | 5 in |
WHEELBASE | 1190 mm | 46.9 in | 1190 mm | 46.9 in | 1189 mm | 46.8 in | 1222 mm | 48.1 in | 1222 mm | 48.1 in | 1221 mm | 48.1 in | 1246 mm | 49.1 in | 1246 mm | 49.1 in | 1245 mm | 49 in | 1281 mm | 50.4 in | 1280 mm | 50.4 in | 1280 mm | 50.4 in |
CHAIN STAY LENGTH | 440 mm | 17.3 in | 439 mm | 17.3 in | 438 mm | 17.2 in | 440 mm | 17.3 in | 439 mm | 17.3 in | 438 mm | 17.2 in | 440 mm | 17.3 in | 439 mm | 17.3 in | 438 mm | 17.2 in | 440 mm | 17.3 in | 439 mm | 17.3 in | 438 mm | 17.2 in |
BOTTOM BRACKET DROP | 40 mm | 1.6 in | 35 mm | 1.4 in | 30 mm | 1.2 in | 40 mm | 1.6 in | 35 mm | 1.4 in | 30 mm | 1.2 in | 40 mm | 1.6 in | 35 mm | 1.4 in | 30 mm | 1.2 in | 40 mm | 1.6 in | 35 mm | 1.4 in | 30 mm | 1.2 in |
STACK | 617 mm | 24.3 in | 614 mm | 24.2 in | 611 mm | 24.1 in | 621 mm | 24.4 in | 619 mm | 24.4 in | 616 mm | 24.3 in | 631 mm | 24.8 in | 628 mm | 24.7 in | 625 mm | 24.6 in | 640 mm | 25.2 in | 637 mm | 25.1 in | 634 mm | 25 in |
REACH | 426 mm | 16.8 in | 430 mm | 16.9 in | 434 mm | 17.1 in | 456 mm | 18 in | 460 mm | 18.1 in | 464 mm | 18.3 in | 476 mm | 18.7 in | 480 mm | 18.9 in | 484 mm | 19.1 in | 507 mm | 20 in | 510 mm | 20.1 in | 514 mm | 20.2 in |
STAND OVER HEIGHT | 732 mm | 28.8 in | 737 mm | 29 in | 742 mm | 29.2 in | 746 mm | 29.4 in | 750 mm | 29.5 in | 755 mm | 29.7 in | 763 mm | 30 in | 768 mm | 30.2 in | 773 mm | 30.4 in | 781 mm | 30.7 in | 758 mm | 29.8 in | 790 mm | 31.1 in |
HANDLEBAR WIDTH | 800 mm | 31.5 in | 800 mm | 31.5 in | 800 mm | 31.5 in | 800 mm | 31.5 in |
STEM LENGTH | 40 mm | 1.6 in | 40 mm | 1.6 in | 50 mm | 2 in | 50 mm | 2 in |
CRANK LENGTH | 165 mm | 6.5 in | 170 mm | 6.7 in | 170 mm | 6.7 in | 170 mm | 6.7 in |
WHEEL SIZE | [F] 29" [R | [F] 29" [R | [F] 29" [R | [F] 29" [R |
Specs
Fork | Fox 36 Float Performance, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant |
---|---|
Hubs |
[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed |
Rims |
Giant TRA WheelSystem, 6069 alloy, welded, 30mm IW, 40mm OW, 21mm H, Wide Guard technology, [F] 29, [R] 29 |
Stem |
Giant Contact SL 35 S/M:40mm, L/XL:50mm |
Chain | KMC X-12 |
Frame | ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage |
Tires | [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4, EXO, TR, tubeless |
Brakes |
Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
Saddle | Giant Romero |
Spokes | Sapim Laser straight pull, DBL technology |
Crankset |
Shimano M512, 30t, 55mm chainline S:165mm, M/L/XL:170mm |
Seatpost |
Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm |
Shifters | Shimano SLX SL-M7100, 1x12 |
Handlebars | Giant Contact TR35, 20mm rise, alloy, 780x35mm |
Rear Shock | Fox Float Performance, 185/52.5, custom tuned for Giant |
Tape/Grips | Giant Tactal Pro single lock-on |
Brake Levers | Shimano Deore BL-MT501 |
Bottom Bracket | Shimano, press fit |
Rear Derailleur | Shimano SLX RD-M7100 |
Front Derailleur | N/A |
Accessories & Extras | tubeless prepared, 2.5" max tire size, 34t max chainring size, integrated down tube storage bag |
Cassette/Freewheel | Shimano SLX, 10x51 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Smoke Metal / Small | 4712878976801 | 1110001104 | 24T21897866L |
Smoke Metal / Large | 4712878976825 | 1110001107 | 24T21318908L |
Smoke Metal / Medium | 4712878976818 | 1110001105 | 24T21452076L |
